Water Methanol Injection Pump

Highest Flow on the Market

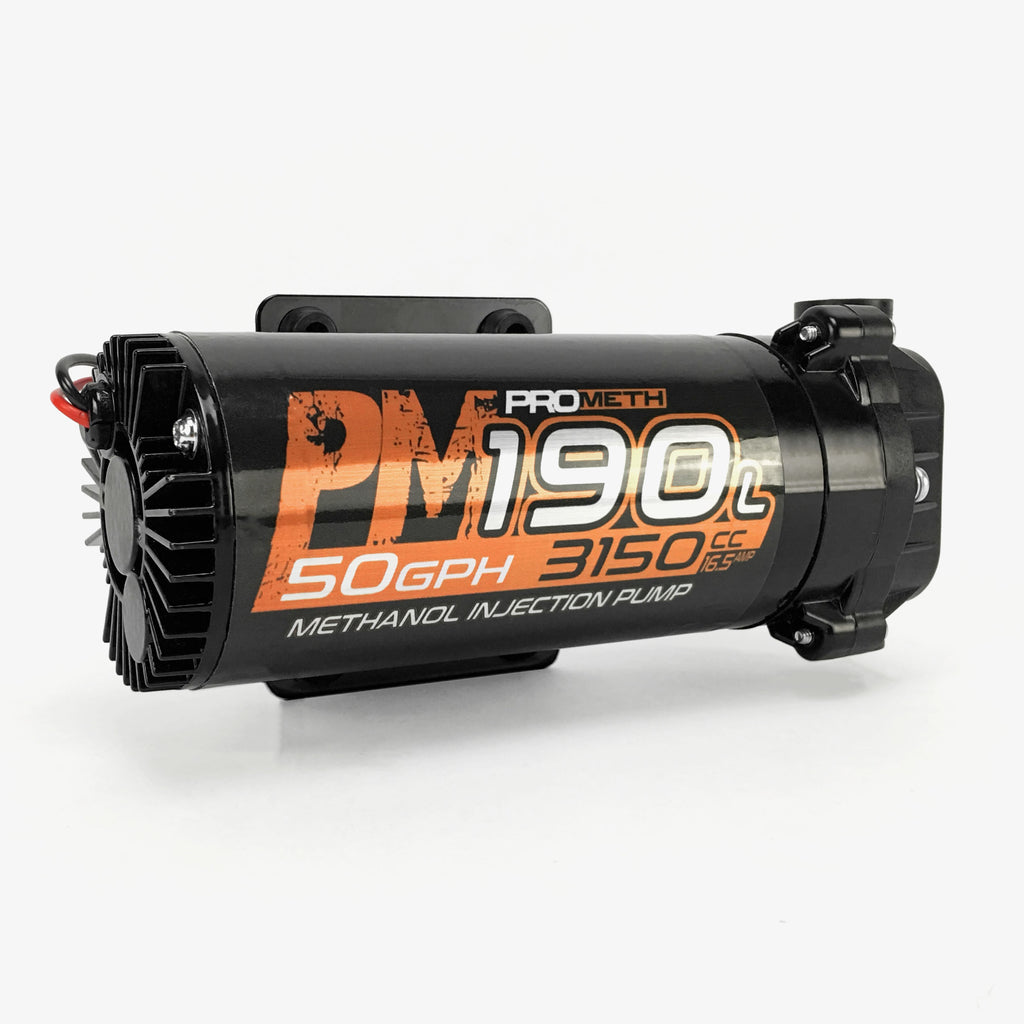

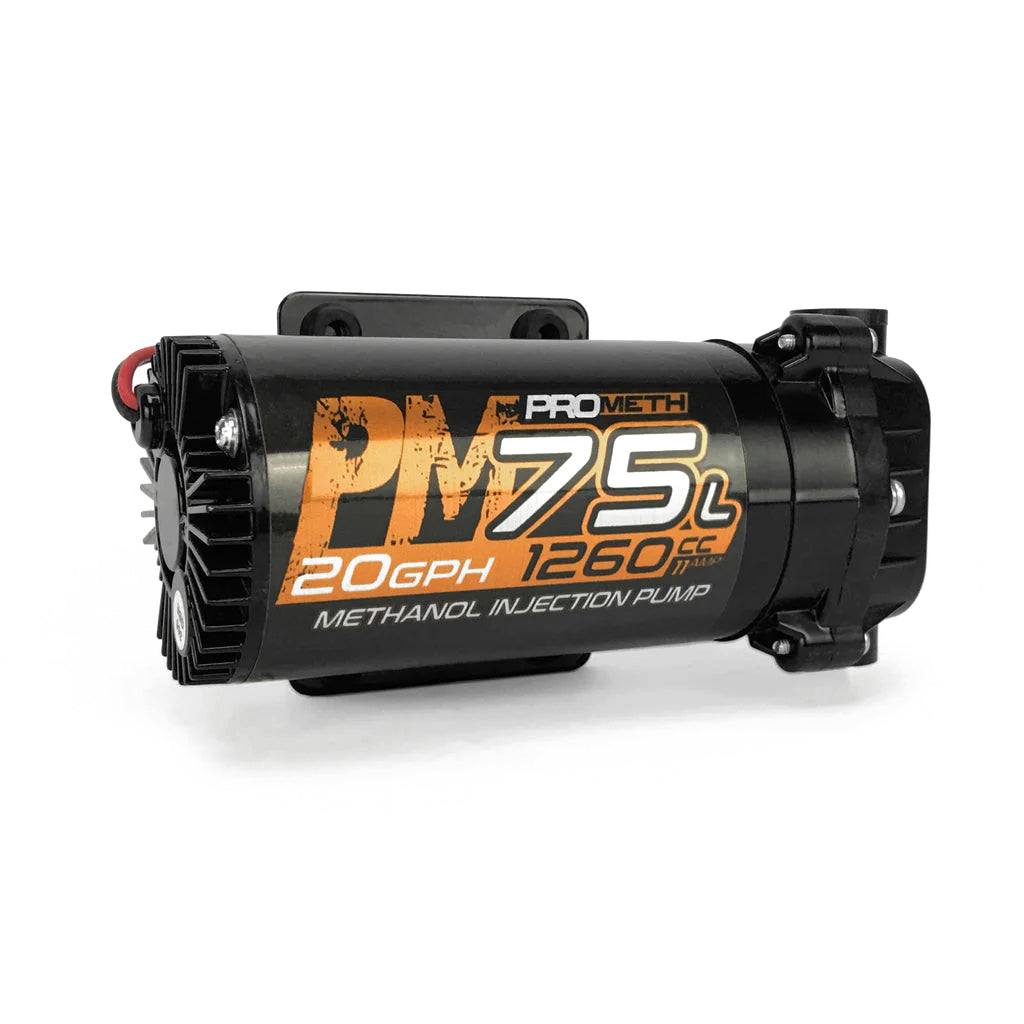

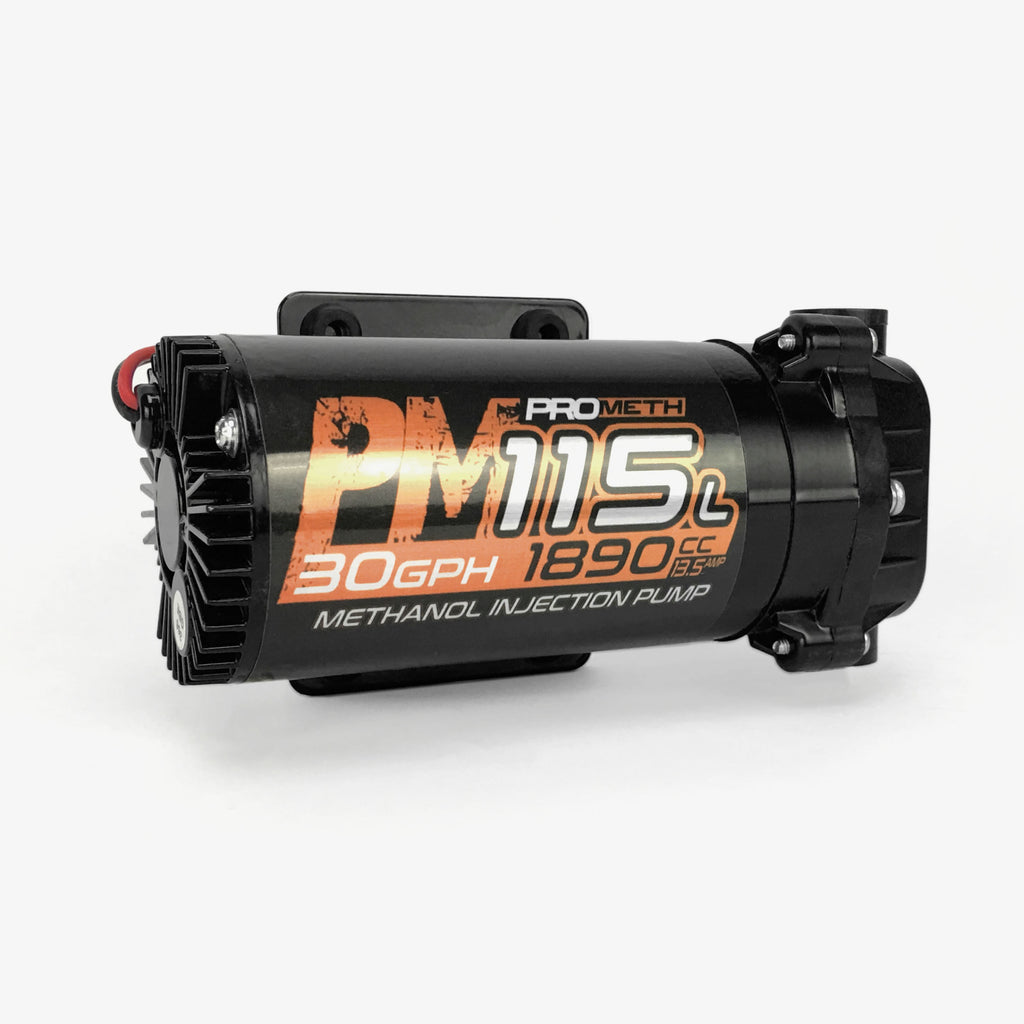

We currently supply three versions of this pump. At the entry level it's the industry standard pump that most water methanol injection companies are using. Its commonly identified as a 1.0 gallon per minute open flow pump with a 10-11 AMP sticker rating depending on the pumps factory pre-set pressure bypass setting of either 200-220 psi. Its not well suited for direct port applications due to its limited flow/pressure potential. However still a great choice for many single or dual nozzle applications under the 600 horsepower mark.

The

Features Include:

• Pressure adjustable from 100-300 PSI
• 3/8 NPT female inlet & outlet port
• Motor turns 1400 RPM @ 12 volts
• 11 amp draw
• Built-in bypass valve
• Built-in thermal protection
• Built-in anti reverse check valve
• Built-in heat sink on back of motor
• Heavy duty dual EPDM pump seals
• Pressure adjustable from 100-300 PSI
• Can run dry up to 1 hour without damage
• 100% methanol compatible
• Tested prior to shipping
• Made in the USA
• Weight 5.2 lbs

Flow & Horsepower Ratings @ 13.5 Volts:

• 1.1 gallons per minute openflow
• Use 12 gauge wire for power and ground
• 75 liters per hour @ 190 PSI
• 20 gallons per hour @ 190 PSI
• 1260 cubic centimeters @ 190 PSI
• Supports up to 1200-1400 horsepower - 100% water mix
• Supports up to 700-900 horsepower - 50/50 water methanol mix
• Supports up to 500-600 horsepower - 100% methanol mix

Special Notes:

• Do not use with petroleum products (E85, E98, gasoline, diesel, etc)
• Does not include pump fittings. Pump fittings are available for sale separately
• Pumps come preset at 190 PSI
• 3/8 NPT fitting is required
• Expect 4-5 years of service if pump pressure is left at 200 PSI or below
• Running the pump over 250 PSI is not advised and will shorten pumps life
• All tests were performed using a 6AN stainless steel braided hose on the inlet side of pump
• Using 1/4" outside diameter nylon on the inlet side of the pump will reduce pump performance and flow output
• Pump may be mounted vertical or horizontal
